BYCO LT |
|
|
FOLDING & DETACHABLE
|
|
|

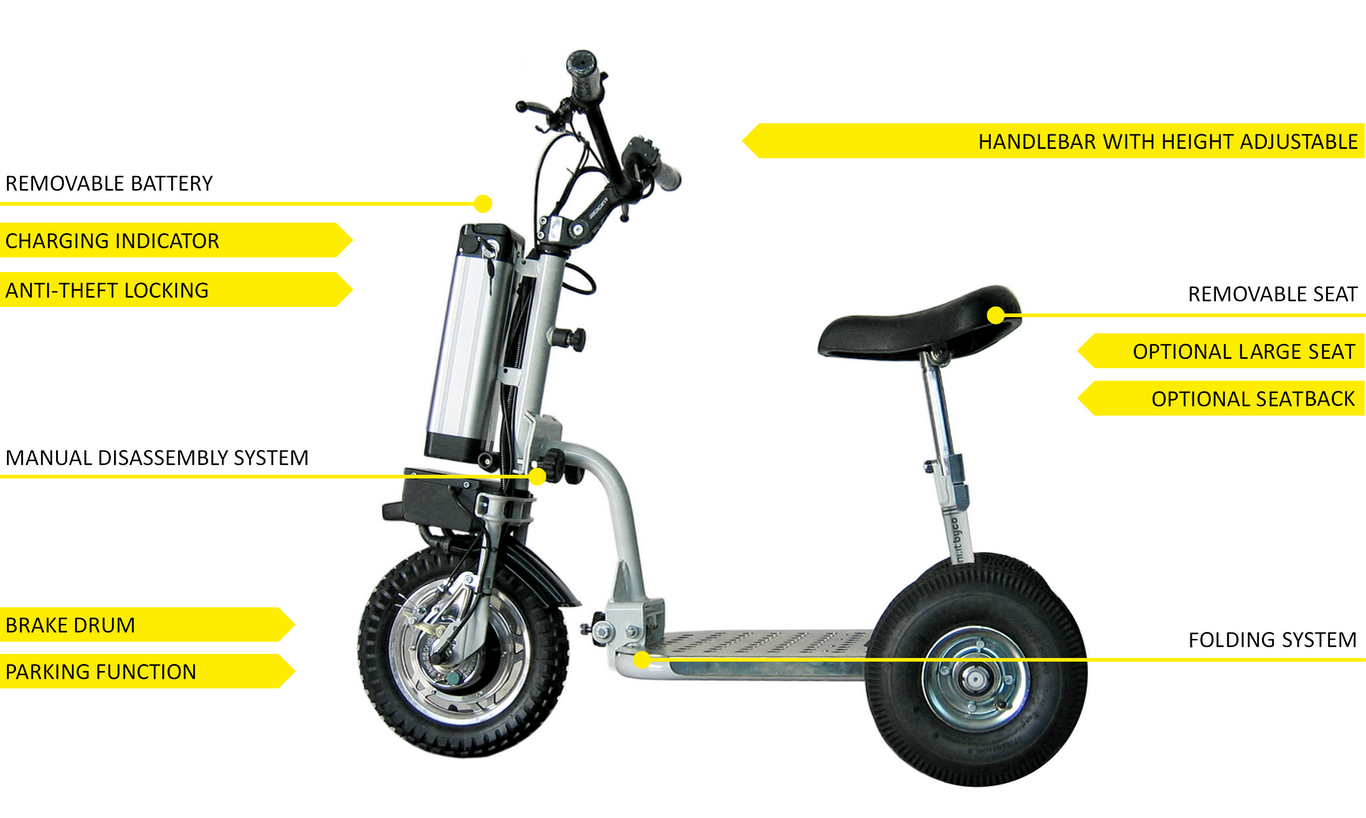

New version from the essential and compact design, characterized by a very lightweight chassis composed of only 2 portions. Easy to fold up on itself and - if necessary - completely disassemblable into several parts exceptionally small, manageable and handy to carry.
|
|
FOLDING / DISASSEMBLY:
|
WITHOUT USING ANY TOOL
|
|
|
|
|
MOTOR |
BRUSHELESS 36 Volt 250 Watt |
|
CONTROLLER |
MOSFET 36 Volt AUTO PROTECTED |
|
GEAR |
FORWARD ? REVERSE |
|
SPEED |
|
|
► PUBLIC PLACES |
6 Km/h - PRESET |
|
► PRIVATE PLACES |
20 Km/h - ACTIVATED MANUALLY |
|
OPERATING RANGE |
20 Km - ON FLAT GROUND WITH AN 80kg PAYLOAD |
|
TYPE BATTERY |
LITHIUM 36 Volt - 10 A/h ? WEIGTH 4 KG WITH INDICATOR OF CHARGE |
|
BATTERY CHARGER |
2 Amp - CHARGING TIME 6 hours - 220 Volt |
|
TURNING RADIUS |
45 cm |
|
GRADIENT |
12% MAXIMUM |
|
CARRYING CAPACITY |
Kg.115 |
|
BRAKE |
BRAKE DRUM WITH PARKING FUNCTION |
|
FRONT WHEELS |
305x50 mm - INFLATABLE |
|
REAR WHEELS |
280x90 mm - INFLATABLES - 4ply |
|
HANDLEBAR |
REGOLABLE |
|
WEIGHT (*) |
21 Kg - TOTAL WITHOUT BATTERY 25 Kg - TOTAL WITH BATTERY |
|
DIMENSIONS |
|
|
► OPEN |
WIDTH 60 cm LENGTH 106 cm |
|
► FOLDED |
WIDTH 60 cm LENGTH 90 cm HEIGHT 61 cm |
|
|
|
|
SPECIAL VERSIONS |
This special version is equipped with LARGE SEAT (*) and weighs approximately 2 kg more than the standard version with THIN SEAT. |
|
|
|
|
|
DETAILS |
|
|
|
ABOUT FOLDING SYSTEM
|
|
|
|
1. |
REMOVE THE SEAT (*) it's the first operation and it's extremely simply to realise because the seat can be removed by hand, in a very few moments and without using any tool.
|
|
|
2.
|

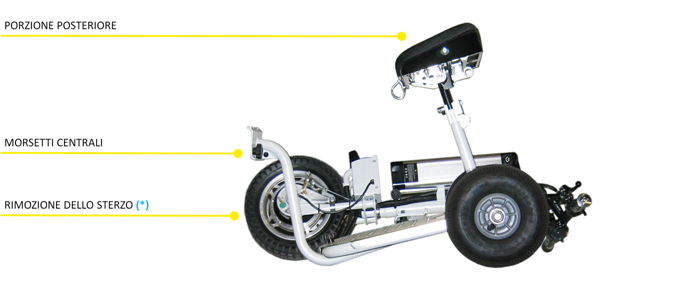

UNBLOCK AND FOLD UP THE CHASSIS it's the the second operation and it also easily carried out thanks to the practical device placed at the center of the vehicle that allows to manually unblock the joint that connects the rear portion to the steering. With consequent rotation of the front portion.
|
|
|
3.
|
LIFTING AND TRANSPORT all the actions concerning the lifting and transportation are made easy and secure thanks to the lifting handle placed in optimum position and thanks to the safety latch which prevents the accidentally opening of the chassis.
|
|
DETAILS |
|||
|
ABOUT DISASSEMBLING SYSTEM
|
|||
|

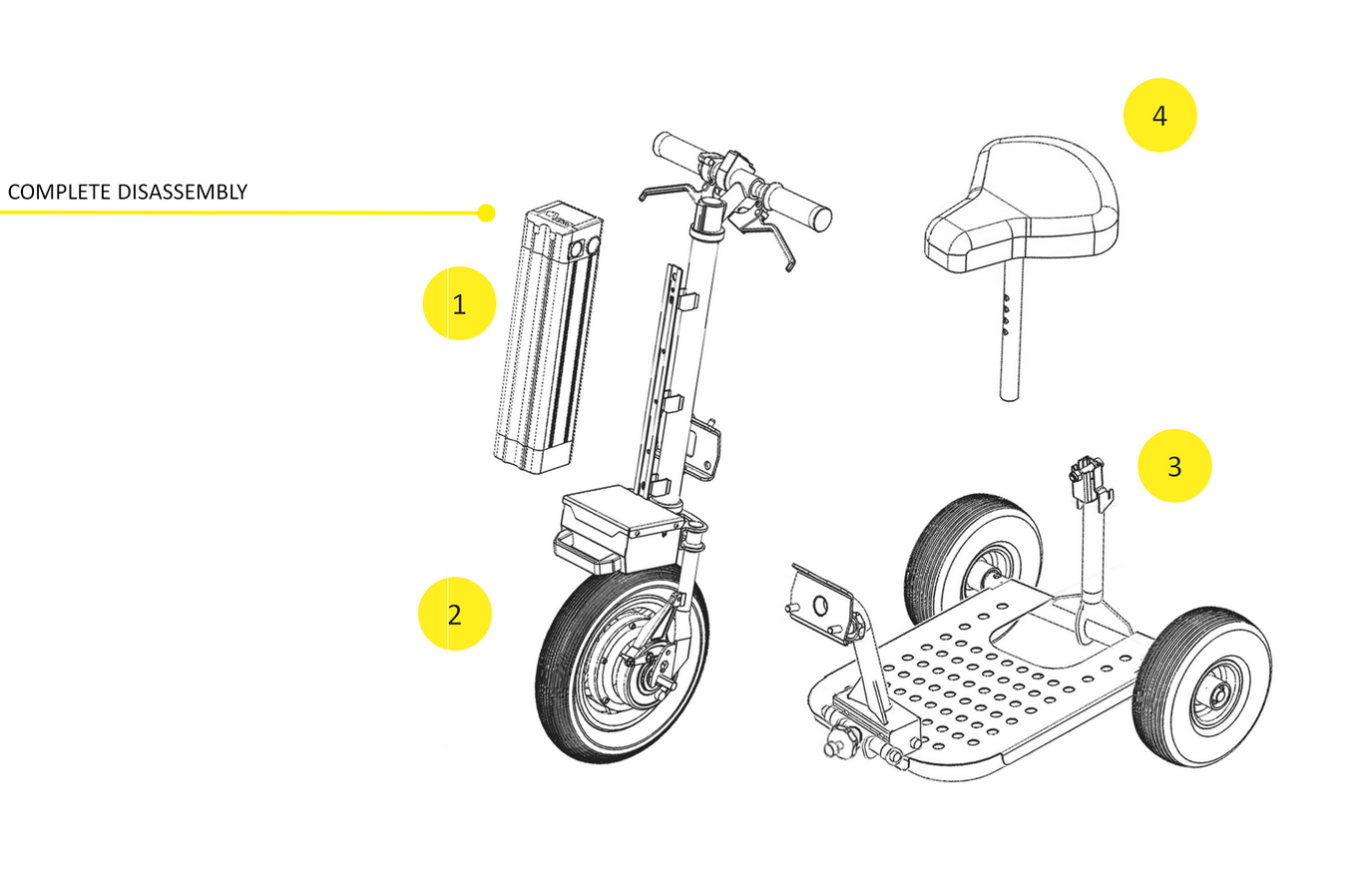

Exist multiple levels of disassembly, so to save time and energy according to the real needs of the moment. For example, you can make a partial disassembly if you don't remove the battery, the seat or the rear wheels. Whereas if you need to lifting portions extremely light, you can remove step by step all the portions until you have a total disassembly. To follow in detail the weights of each element.
|
|||
|
|
|
|
|
|
BATTERY |
4 |
|
1 |
|
FRONT UNIT |
9.5 |
|
2 |
|
REAR UNIT |
10.5 |
|
3 |
|
THIN SEAT (*) |
1 |
|
4 |
|
|
[KG]
|
|
|
|
(*) in the special version equipped with LARGE SEAT the seat weighs 3KG dipeso
