BYCO PLUS |
|
|
FOLDING & DETACHABLE
|
|
|
It’s composed of three independent portions each weighing lesser than ten kilograms. It’s easy to fold up on itself and - if necessary - it can be completely disassembled into several parts really handy that allow you to put your vehicle in the boot of the car or in the practical travel bag.
|
|
FOLDING / DISASSEMBLY:
|
WITHOUT USING ANY TOOL
|
|
|
|
|
MOTOR |
BRUSHELESS 36 Volt 250 Watt (*) |
|
CONTROLLER |
MOSFET 36 Volt AUTO PROTECTED |
|
GEAR |
FORWARD – REVERSE |
|
SPEED |
|
|
► PUBLIC PLACES |
6 Km/h - PRESET |
|
► PRIVATE PLACES |
20 Km/h - ACTIVATED MANUALLY |
|
OPERATING RANGE |
20 Km - ON FLAT GROUND WITH AN 80kg PAYLOAD |
|
TYPE BATTERY |
LITHIUM 36 Volt - 10 A/h – WEIGTH 3 KG WITH INDICATOR OF CHARGE |
|
BATTERY CHARGER |
2 Amp - CHARGING TIME 6 hours - 220 Volt |
|
TURNING RADIUS |
45 cm |
|
GRADIENT |
12% MAXIMUM |
|
WEIGHT CAPACITY |
130 Kg |
|
BRAKE |
BRAKE DRUM WITH PARKING FUNCTION |
|
FRONT WHEELS |
305x70 mm - INFLATABLE |
|
REAR WHEELS |
305x100 mm - INFLATABLES - 4ply |
|
HANDLEBAR |
REGOLABLE AND INCLINABLE |
|
WEIGHT |
30 Kg - TOTAL WITHOUT BATTERY 33 Kg - TOTAL WITH BATTERY |
|
DIMENSIONS |
|
|
► OPEN |
WIDTH 60 cm LENGTH 106 cm |
|
► FOLDED |
WIDTH 34 cm LENGTH 95 cm HEIGHT 46 cm |
|
|
|
|
SPECIAL VERSIONS |
BYCO PLUS is also available in a SPORT version with (*) MOTORE 36 Volt - 350 Watt |
|
|
|
|
|

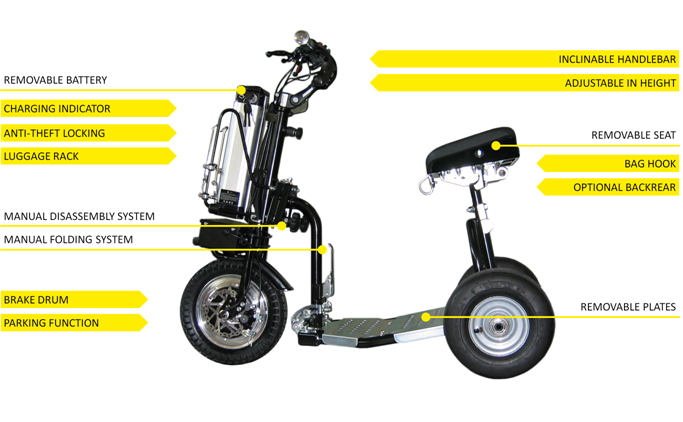

DETAILS |
|
|
|
ABOUT FOLDING SYSTEM
|
|
|
|
1. |
REMOVE THE SEAT AND THE METAL PLATES it’s the first operation and it’s extremely simply to realise because all the elements can be removed by hand, in a very few moments and without using any tool.
|
|
|
2.
|
UNBLOCK AND FOLD UP THE CHASSIS by activating the lever located at the center of the vehicle, it is possible to unblock and simultaneously fold up all the mobil parts of the chassis, by means of a combined action on the steering column (which turns of 90 degrees) and on the rear wheels (which close like a compasses)
|
|
|
3.
|

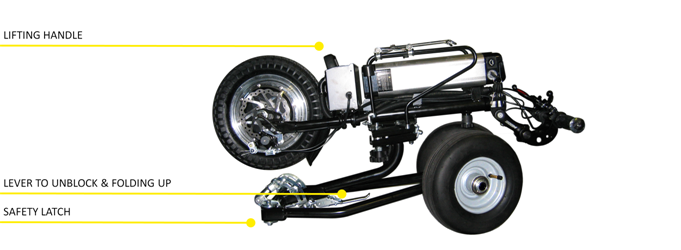

LIFT AND TRANSPORT THE SCOOTER the lifting handle placed in optimum position and the safety latch which prevents the accidentally opening of the chassis, make plain and secure all the actions concerning the lifting and transportation.
|
|
DETAILS |
|||
|

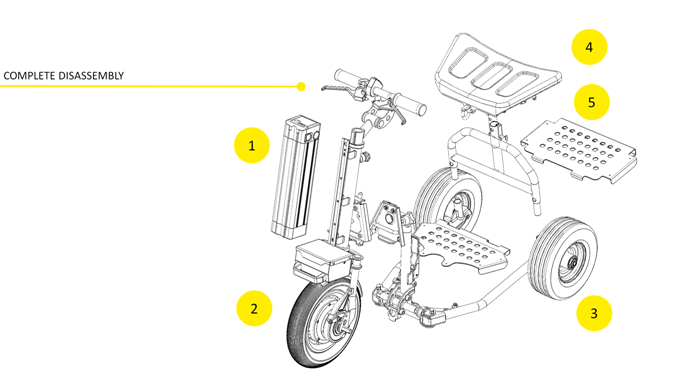

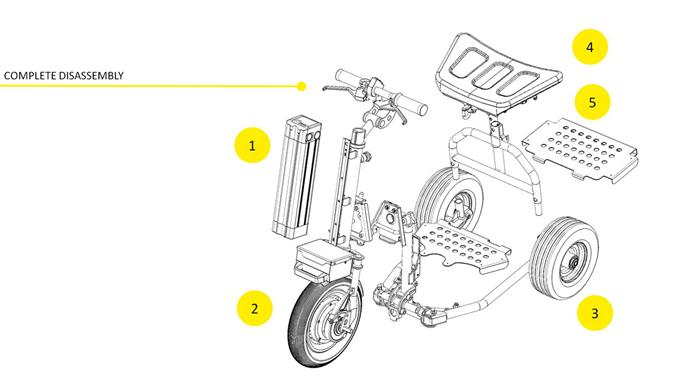

ABOUT DISASSEMBLING SYSTEM
|
|||
|
Exist multiple levels of disassembly, so to save time and energy according to the real needs of the moment. For example, you can make a partial disassembly if you don't remove the battery, the seat or the rear wheels. Whereas if you need to lifting portions extremely light, you can remove step by step all the portions until you have a total disassembly. To follow in detail the weights of each element.
|
|||
|
|
|
|
|
|
BATTERY |
4 |
|
1 |
|
STEERING ASSEMBLY (*) |
9.5 |
|
2 |
|
REAR WHEELS |
10 |
|
3 |
|
SEAT ASSEMBLY |
4.5 |
|
4 |
|
METAL PLATES |
2 |
|
5 |
|
|
[KG]
|
|
|
|
(*) in the SPORT version with more powerful motor, the weight of the steering assembly increases of about 2KG
